WineKeeper Leak Detection #19131
Overview
Detects gas leaks in the system.
Details

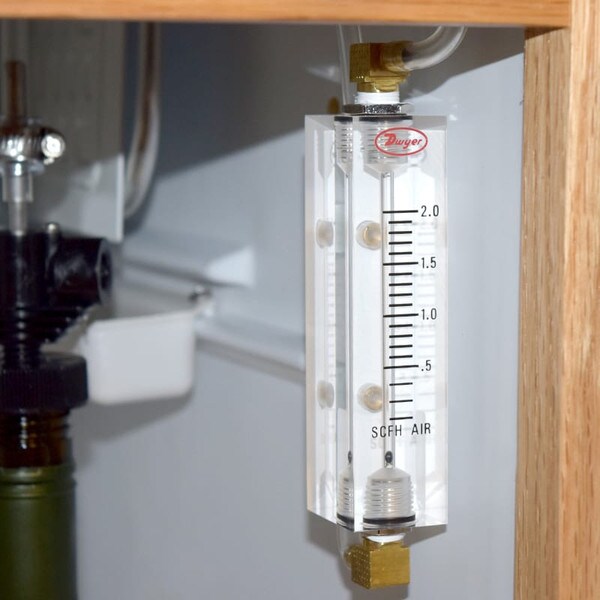

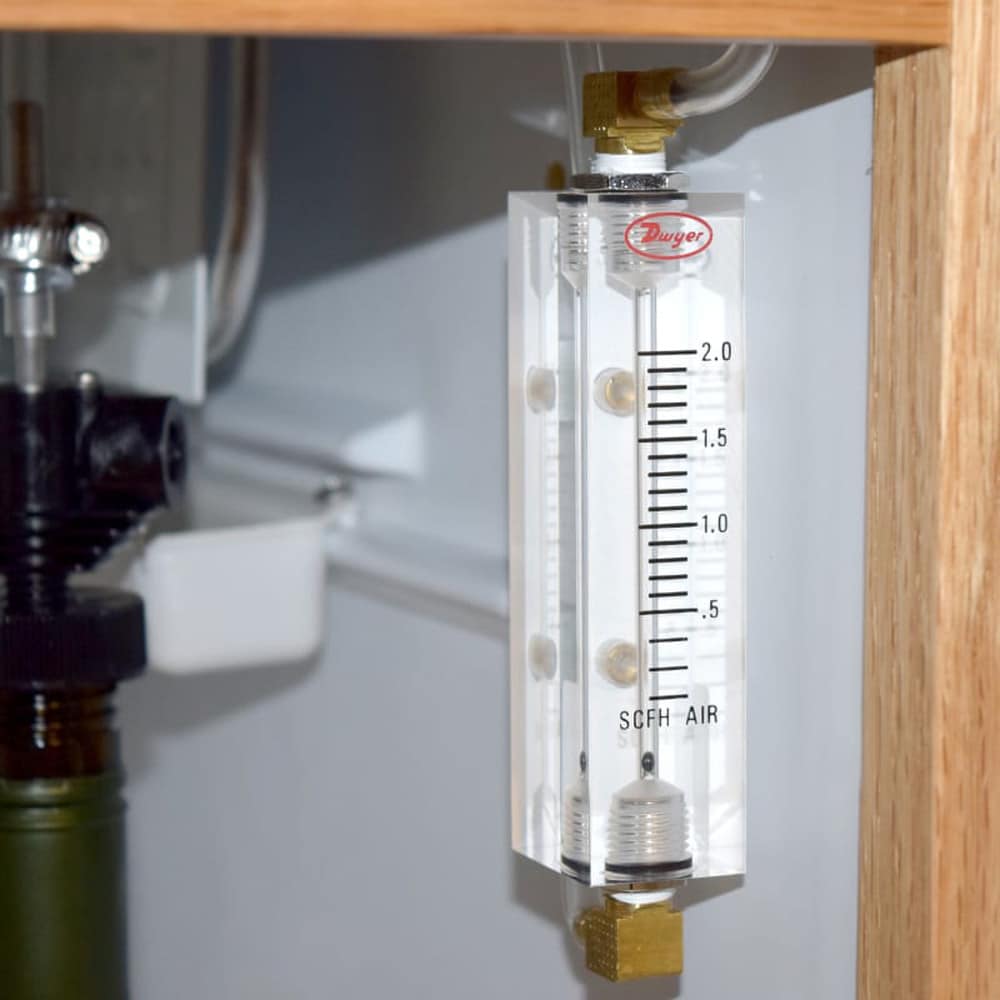

WineKeeper Leak Detection (P/N 19131). Highly sensitive ball rises in the graduated column with airflow of 0.2 cubic feet per hour or more. If there is a slight leak at the assembly or in the manifold supply lines inside the cabinet, this device will indicate there is a leak before losing a cylinder of air. For testing for leaks from the regulator through the entire system. This item combined with our leak detection gauge #15173 will cover any leaks after the regulator.
The kit gets spliced into the incoming supply line inside the cooling unit. It comes with additional tubing, a union and mounting brackets. Instructions supplied and found under the resources tab.
Available for all refrigerated units, including Napa, Sonoma, Magnum, Monterey and Monterey ETL. Can also be added to inline units but will need a vertical surface for mounting.
Features
- Designed for use with refrigerated WineKeeper units
- Factory installation recommended
- Sensitive to airflow, detecting leaks in the system
- Combine with the leak detection gauge for full coverage (#15173)
Specs & Resources
Brand: WineKeeper
Weight: 1.6 lbs
Material: Plastic
